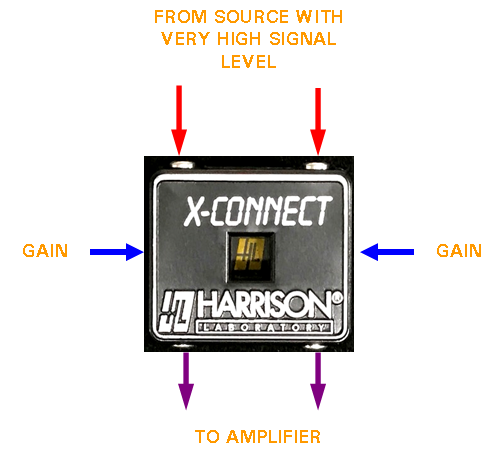

THE X-CONNECT™ IS AN ADJUSTABLE ATTENUATOR THAT IS MOST OFTEN USED TO ADD A VOLUME OR LEVEL CONTROL TO HIGH END BASIC AMPLIFIERS WITHOUT A MEANS TO VARY THE GAIN. IT IS ALSO USED TO REDUCE THE SIGNAL LEVEL FROM A SOURCE THAT WOULD OVERLOAD YOUR INPUT STAGE PRE-AMPLIFIER. THIS PRODUCT IS GREAT IF ONE DOES NOT KNOW THE AMOUNT OF ATTENUATION NEEDED WHEN A FIXED ATTENUATOR IS DESIRED.

SPECIFICATIONS

HIGH IMPACT POLYCARBONATE CASE 2” X 2” X 1” approx.

RCA FEMALE INPUT AND OUTPUT JACKS

20 VRMS INPUT MAX 0 TO 1MHZ

STANDARD RECOMMENDED DRIVING IMPEDANCE 600Ω

MAXIMUM DRIVING IMPEDANCE 10,000Ω (10KΩ)

NOISE AND DISTORTION TOO LOW TO MEASURE

ACCURACY N.A.
