2

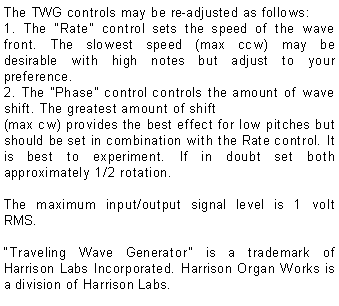

Text Box: The TWG controls may be re-adjusted as follows: 1. The “Rate” control sets the speed of the wave front. The slowest speed (max ccw) may be desirable with high notes but adjust to your preference. 2. The “Phase” control controls the amount of wave shift. The greatest amount of shift (max cw) provides the best effect for low pitches but should be set in combination with the Rate control. It is best to experiment. If in doubt set both approximately 1/2 rotation. The maximum input/output signal level is 1 volt RMS. “Traveling Wave Generator” is a trademark of Harrison Labs Incorporated. Harrison Organ Works is a division of Harrison Labs. Text Box: Harrison Organ Works 303 841 5360 http://www.harrisonorganworks.com/ P.O. BOX 1359 PARKER, CO 80134 Next Page
