INSTRUMENTATION

Basic Voltmeter VM-1

DC AMPS  ( M700 )

AC Volts  ( M710 )

AC Amps  ( M720 )

Hertz Meter  ( M730 )

PYROMETER  ( M750 )

High Temperature  Thermocouple Amplifier with Readout for chromel alumel probes

· No batteries to go dead

· VM-1 backboard has built-in power supply for remote pyro amplifier

· Low drift high accuracy

· Remote thermocouple amplifier with ice point junction

· Built-in ice point junction

· Measures high exhaust temperature

· PROBE NOT INCLUDED

· Simple to re-calibrate if necessary

· No batteries to go dead

· Simple jumper change for scale range

· Jumper change for decimal points

· Low drift high accuracy

· Optional backboard has screw terminals and provides configurations listed below

To measure current, the VM-1 basic meter is ordered with the current input back board as # M700. Not included is the appropriate current shunt. Refer to the price list for shunts. The back board has screw terminals and a power supply that isolates the VM-1 from the power supply. Back board has isolated 12VDC meter supply in order to read shunt currents that are significantly above ground potential.

To measure AC Volts, the VM-1 basic meter is ordered with the AC rms converter back board as #M710. The back board has screw terminals and a power supply that isolates  the VM-1 from the power supply. The back board has screw terminals and a power supply that isolates the VM-1 from the power supply. Back board has isolated 12VDC meter supply in order to AC voltages that are significantly above ground potential.

To measure AC Amps, the VM-1 basic meter is ordered with the AC rms converter back board as # M720. The back board has screw terminals but does not need the isolator power supply since the current transformer used for sensing isolates the VM-1 unless the current shunt is used.* Built-in current shunt 10 ohm load for 1000:1 current xfmrs.

To measure AC hertz or frequency, order the VM-1 basic meter with the AC hertz converter back board. The back board has screw terminals and a power supply that isolates the VM-1 from the power supply.  Back board has isolated 12VDC meter supply in order to AC voltages that are significantly above ground potential. Reads up to 500hz. Ideal for measuring woofer frequencies or AC power generation. Must specify AC voltage range.

No Sensors required

No Sensors required

Current transformer required *

Typically 1000:1

Current shunt required

Thermocouple probe required

· Available in degrees C or F

· Connects to any DC voltmeter or VM-1

· Measures up to 150° C

· Also sold in kit form

STANDARD TEMPERATURE SENSOR

CURRENT SHUNTS

· 50 Amps (100 Amps peak)

· 100 Amps (200 Amps peak)

· Connects to any DC voltmeter or VM-1

$25.95
Meter Options
Meter Options
Meter Options
Meter Options

VM-1 LESS BACK

TERMINAL PLATE

Connections must be soldered

DC VOLTS  ( M705 )

This version is the basic 3-1/2 digit VM-1 pre-wired to the back board terminal plate. The solder jumpers can be pre-set for 0 to 1.999 volts, 0 to 19.99 volts (default value for 12 volt vehicle systems), 0 to 199.9 volts, or 0 to 299.9 volts.

SPECIFICATIONS

APPROXIMATELY 2” X 3”

INCLUDES SMOKED BEZEL MOUNTING PLATE

RED (OPTIONAL BLUE) DISPLAY DIGITS 0.6”

POWER REQUIREMENTS 11.0 TO 14.7 VDC

CURRENT DRAW 250 TO 350 MILLIAMPS

ACCURACY ± 1% OF FULL SCALE

AC VERSIONS READ TRUE RMS!

Meter Options
VOLTAGE RANGES
Meter Options
VOLTAGE RANGES
VOLTAGE RANGES
VOLTAGE RANGES

BE SURE TO ORDER THE RANGE THAT MATCHES YOUR CURRENT SHUNT

BE SURE TO ORDER THE RANGE THAT MATCHES YOUR MAXIMUM VOLTAGE

Meter Options
CURRENT SHUNT
Meter Options
CURRENT SHUNT

BE SURE TO ORDER THE RANGE THAT MATCHES YOUR MAXIMUM VOLTAGE

No Sensors required

Meter Options
VOLTAGE RANGES
Meter Options
VOLTAGE RANGES

BE SURE TO ORDER THE RANGE THAT MATCHES YOUR CURRENT XFMR

THESE PANEL METERS ARE PERFECT FOR POWER GENERATION MONITORS SUCH AS FOR STANDBY GENERATORS OR YACHT POWER GENERATORS

BE SURE TO ORDER THE RANGE THAT MATCHES YOUR MAX AC VOLTAGE

Meter Options
Meter Options
Version
Centigrade or Farenheit
Version
Centigrade or Farenheit
CURRENT RATING
CURRENT RATING

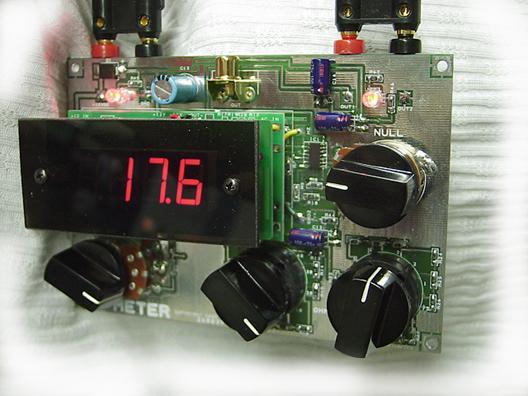

Z– METER & BASS AUDIO GENERATOR
