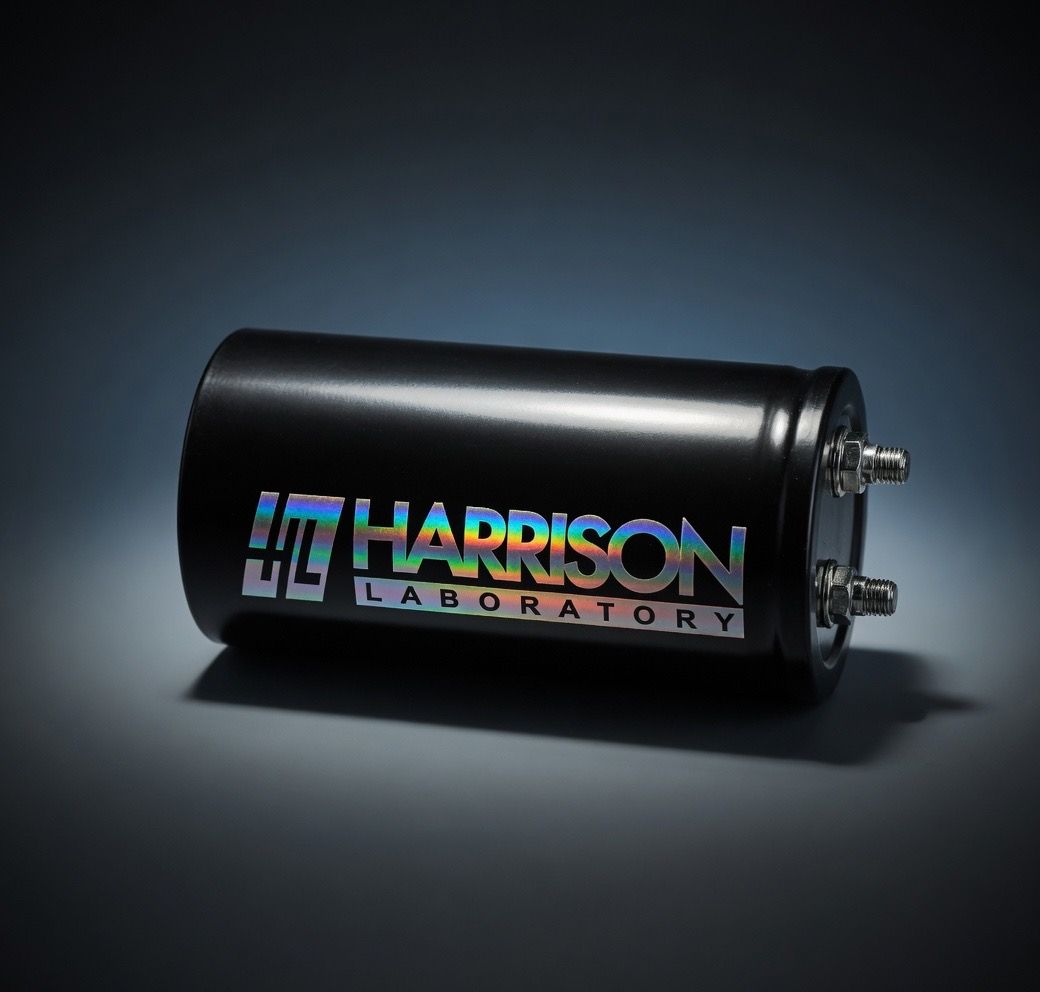

Text Box: CAPACITANCE - .47 FARAD +/- 15%  (Constant current charge method)
ESR (Equivalent Series Resistance) - .003 OHMS +/- 20%
OPERATING VOLTAGE - 20 VOLTS    (Intended use for 12 V. auto)
DIMENSIONS - 2.5" DIA. X 4.75" HEIGHT +/- 2%
OPERATING TEMPERATURE - 95 DEGREES CEL. MAX.

CAPACITANCE - 1 FARAD +/- 15%  (Constant current charge method)

ESR (Equivalent Series Resistance) - .0025 OHMS +/- 20%

OPERATING VOLTAGE - 20 VOLTS    (Intended use for 12 V. auto)

TWO SIZES DIMENSIONS - 3" DIA. X 8.75" OR (5.625") HEIGHT +/- 2%

OPERATING TEMPERATURE - 95 DEGREES CEL. MAX.

Text Box: CAPACITANCE - 1.47 FARAD +/- 15%  (Constant current charge method)
ESR (Equivalent Series Resistance) - .002 OHMS +/- 20%
OPERATING VOLTAGE - 20 VOLTS    (Intended use for 12 V. auto)
DIMENSIONS - 3" DIA. X 8.75" HEIGHT +/- 2%
OPERATING TEMPERATURE - 95 DEGREES CEL. MAX.
Text Box: NOTE: Capacitance for polarized electrolytic capacitors cannot be measured by a capacitance meter or bridge. Either the 2nd or 3rd time constant using RC Time Constant or Constant Current Charge methods are acceptable, the latter being the more preferred method.
Low ESR "Stiffening"
or "Smoothing" Filter Capacitors

Optional Aluminum Finish. Consult Factory.

Includes Mounting Straps, first charge resistor, and instructions.

VALUES IN FARADS
VALUES IN FARADS
